STD Involute Spline Hob Cutter with Profile DIN 5480
2021-10-23 11:55:13
jiangxingTools
4173
STD Involute Spline Hob Cutter with Profile DIN 5480

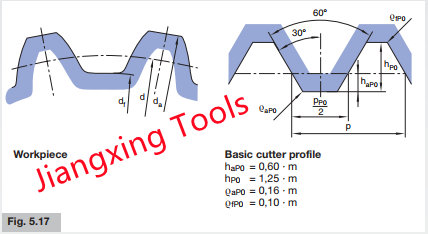

basic hob profile to DIN 5480 standard
module: m0.5-m10, pressure angle: 30°
External spline profiles with involute flanks to DIN 5480 and special standards.
When ordering involute spline hobs, please see module, pressure angle, tip circle diameter, root circle diameter, diametral two-roll measurement, DIN standard of the external spline.
